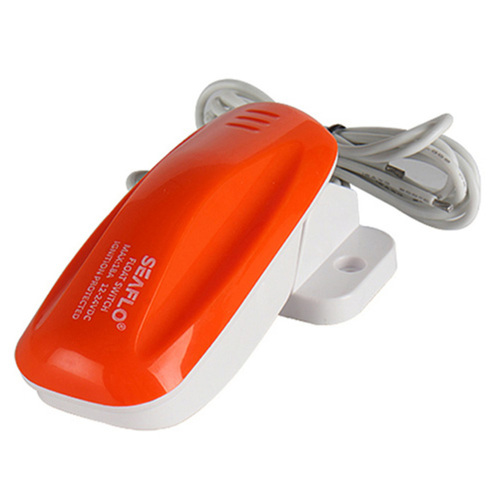

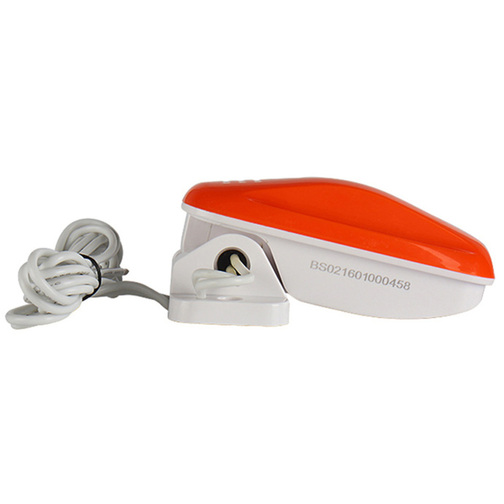

Seaflo 02 Series Bilge Pump Float Switch

The Seaflo 02 Series Bilge Pump Float Switch is an essential component in marine vessels designed to automatically activate bilge pumps when water levels rise within the bilge area. This Seaflo automatic float switch is constructed from marine grade materials to turn on and off bilge pumps should the water level increase or decrease and is ignition protected.

What are the main features of the Seaflo 02 Series Float Switch?

• Automatic Operation: The primary function of the Seaflo 02 Series Bilge Pump Float Switch is to automatically activate bilge pumps when water levels reach a certain threshold within the bilge compartment of a boat or vessel. This helps to prevent water accumulation and potential damage to the vessel.
• Float Mechanism: The switch operates on a float mechanism, consisting of a buoyant float attached to a lever arm. As water levels rise, the float rises with them, causing the lever arm to pivot and trigger the switch.
• Reliable Performance: The float switch is designed for reliable performance in demanding marine environments. It is built to withstand exposure to moisture, saltwater, and other corrosive elements commonly encountered on boats and vessels.
• Universal Compatibility: The Seaflo 02 Series Bilge Pump Float Switch is compatible with most bilge pump systems, making it a versatile choice for both new installations and as a replacement component in existing systems.

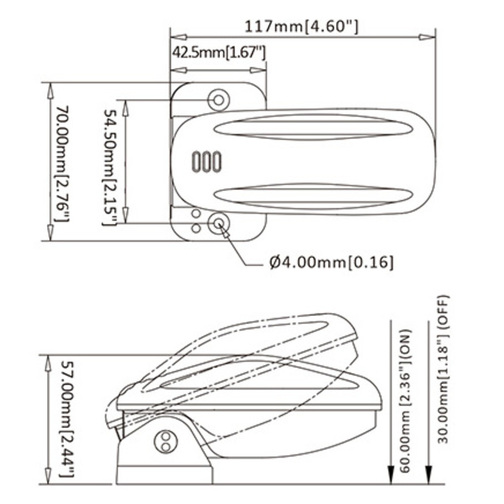

• Pre-set Activation Depth: The activation depth is set at 60mm where the switch triggers the bilge pump to operate. When the level reaches 30mm, the float will communicate with the pump to stop operations.
• Easy Installation: Installation of the float switch is typically straightforward and can be done by following the manufacturer's instructions. It is usually mounted within the bilge compartment using screws or other fasteners and connected to the bilge pump via electrical wiring.
