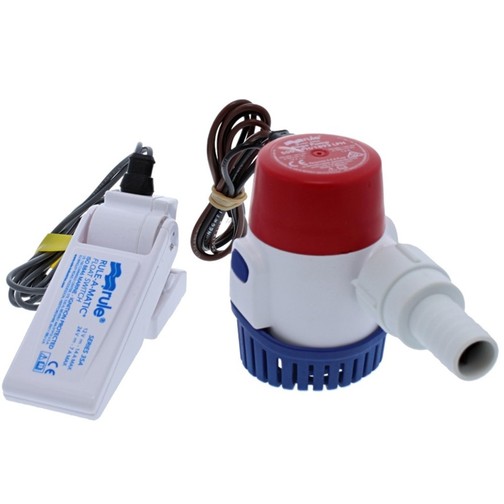

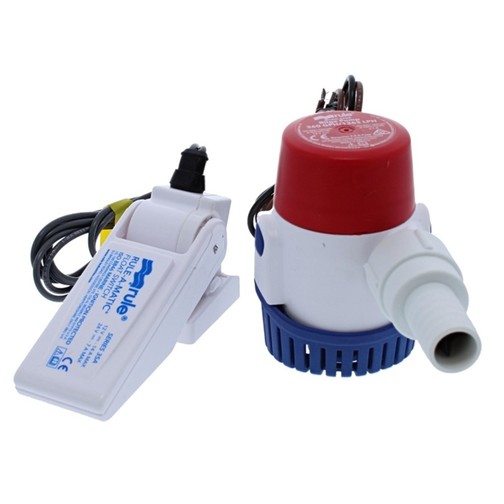

A Rule bilge pump and Rule Rule-A-Matic float switch combination that is ignition protected, highly abrasion resistant with a removable strainer base for cleaning.
A Rule bilge pump and Rule Rule-A-Matic float switch combination that is ignition protected, highly abrasion resistant with a removable strainer base for cleaning.
This ready-to-go boat bilge pump kit combines the two basic items for a bilge pump setup. Both the bilge pump and float switch come with pre-stripped wires for easy installation.
When wired up, the bilge pump will be activated when the float switch rises to the 'on' position as the water level rises. When the water level is low the switch sits idle but as the water level increases and becomes too high the float switch rises with the water and once the maximum level is reached the switch clicks and sends a signal to a water pump to operate. The pump should then do its job until the float switch is lowered to the 'off' position, the pump will then turn off.
The positioning of the switch is relatively important so that it is most effective.
Bilge Pump Specifications
| EC311 | EC311A | |
| Flow Rate | 360 Gallons per Hour (1363 Litres per Hour) | 500 Gallons per Hour (1893 Litres per Hour) |
| Height | 99mm | 99mm |
| Width | 74mm | 74mm |
| Depth | 64mm | 64mm |
| Voltage | 12v | 12v |
| Maximum Amp Draw | 2.1 amps | 1.6 amps |
| Fuse Size | 2.5A | 4A |
| Port Size | 3/4" (19mm) Hose Tail | 3/4" (19mm) Hose Tail |
| Compliance | ISO 8849 & ISO 8846 | ISO 8849 & ISO 8846 |
Float Switch Specifications
| Length | 120mm |
| Width | 41mm |
| Height | 53mm |
| Voltage | 12-24v |
| Wire Length | 71cm |
| Max ampage | 14 amps |
